CSF

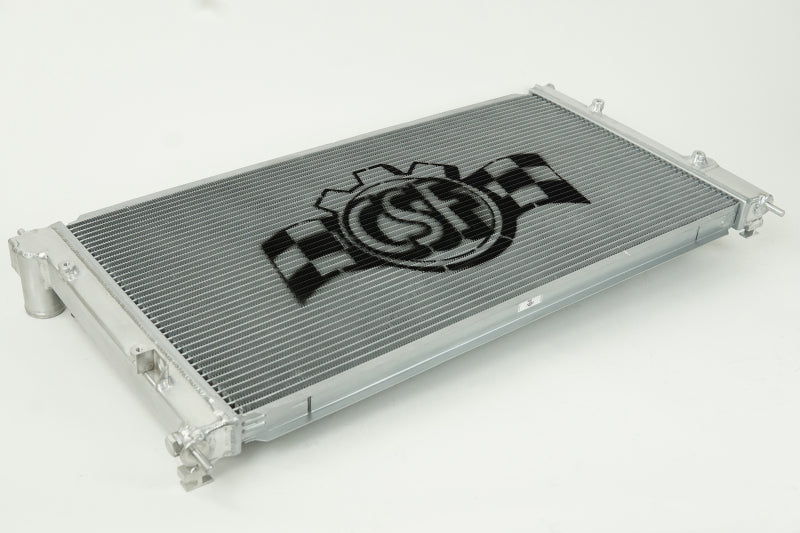

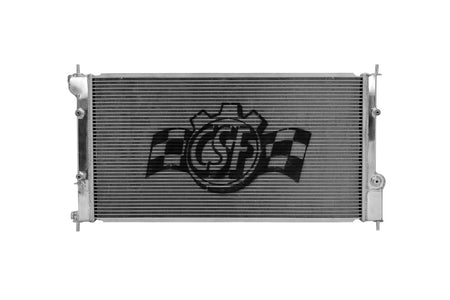

CSF 13-16 Scion FR-S / 13-20 Toyota 86 / 22+ Toyota GR86 / 2013+ Subaru BRZ Radiator

U.S. shipping options and estimated delivery details are shown at checkout when available.
Processing and delivery estimates vary by product, availability and destination.
Need your parts by a specific date? Contact us before ordering.
$375.00
$399.00 Sale $375.00
Checking fitment Verifying product fitment

We are checking this product against your selected vehicle.

Selected vehicle None selected
SELECT VEHICLE REQUEST FITMENT HELP
Not sure it fits?
Send us your VIN and current vehicle setup before ordering. Our shop team will help confirm compatibility.
Why Buy From Torque Ranch Motors?

Real truck experts, professional installation in Hutto, Texas, fitment support before you order, and reliable U.S. shipping options shown at checkout when available.

Product details
  • Vendor CSF
  • SKU CSF7050
Description Shipping & Delivery

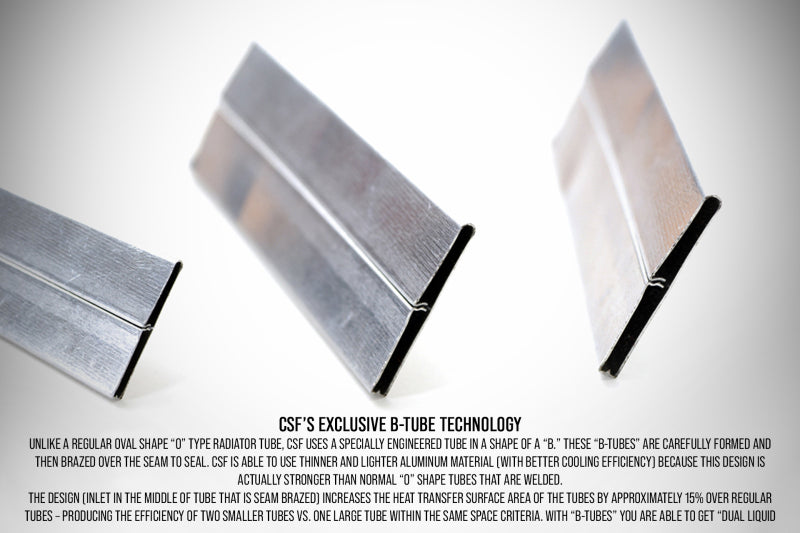

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your FRS/BRZ/86/GR86 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year Make Model Submodel
2013-2016 Scion FR-S Base
2013-2020,2022-2025 Subaru BRZ Limited
2013-2019,2022-2025 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2019 Subaru BRZ Series.Gray
2016 Subaru BRZ Series.HyperBlue
2017 Subaru BRZ Series.Yellow
2018,2020,2024-2025 Subaru BRZ TS
2017-2020 Toyota 86 Base
2018-2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition
2017 Toyota 86 Special Edition
2019 Toyota 86 TRD Special Edition
2023 Toyota GR86 10th Anniversary Special Edition
2022-2026 Toyota GR86 Base
2025 Toyota GR86 Hakone Edition
2022-2026 Toyota GR86 Premium
2024 Toyota GR86 TRUENO Edition
2026 Toyota GR86 Yuzu Edition
