Westin

Westin 2022 Chevrolet Tahoe/Suburban MAX Winch Tray - Blk

U.S. shipping options and estimated delivery details are shown at checkout when available.
Processing and delivery estimates vary by product, availability and destination.
Need your parts by a specific date? Contact us before ordering.
$768.75
Checking fitment Verifying product fitment

We are checking this product against your selected vehicle.

Selected vehicle None selected
SELECT VEHICLE REQUEST FITMENT HELP
Not sure it fits?
Send us your VIN and current vehicle setup before ordering. Our shop team will help confirm compatibility.
Why Buy From Torque Ranch Motors?

Real truck experts, professional installation in Hutto, Texas, fitment support before you order, and reliable U.S. shipping options shown at checkout when available.

Product details
  • Vendor Westin
  • SKU WES46-24045
Description Shipping & Delivery

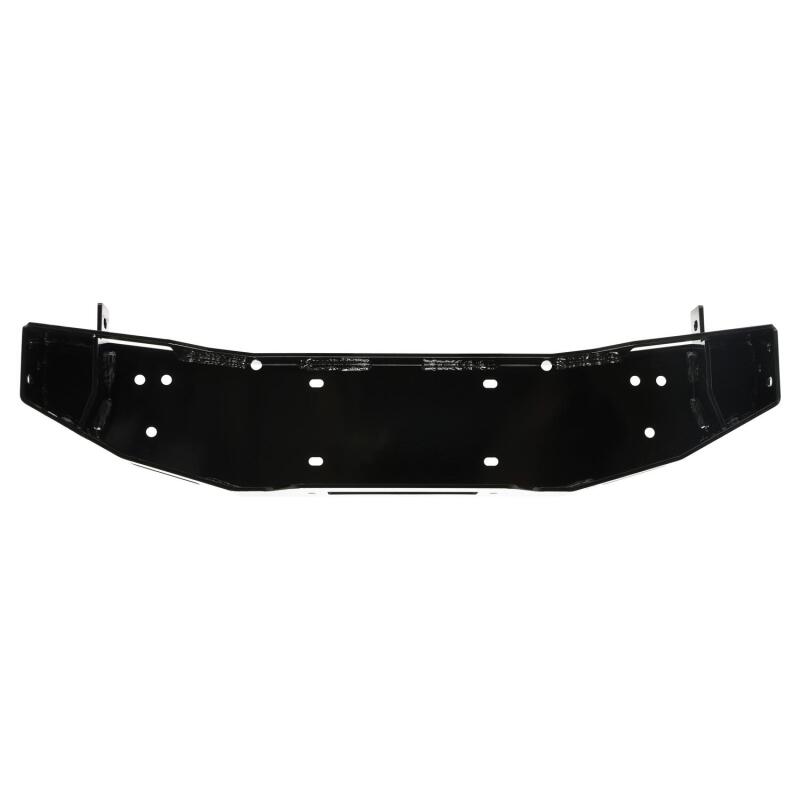

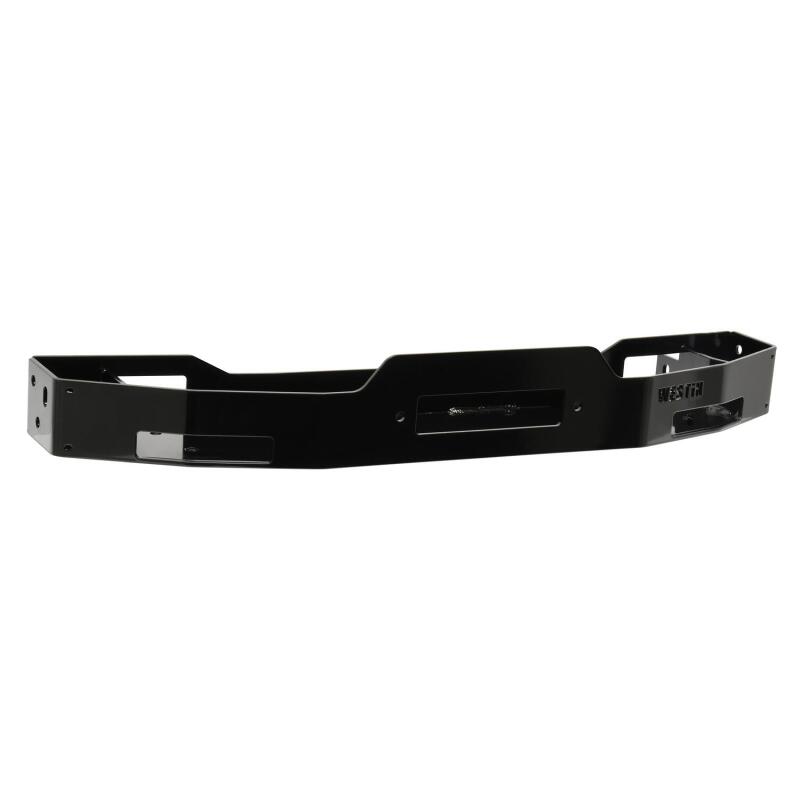

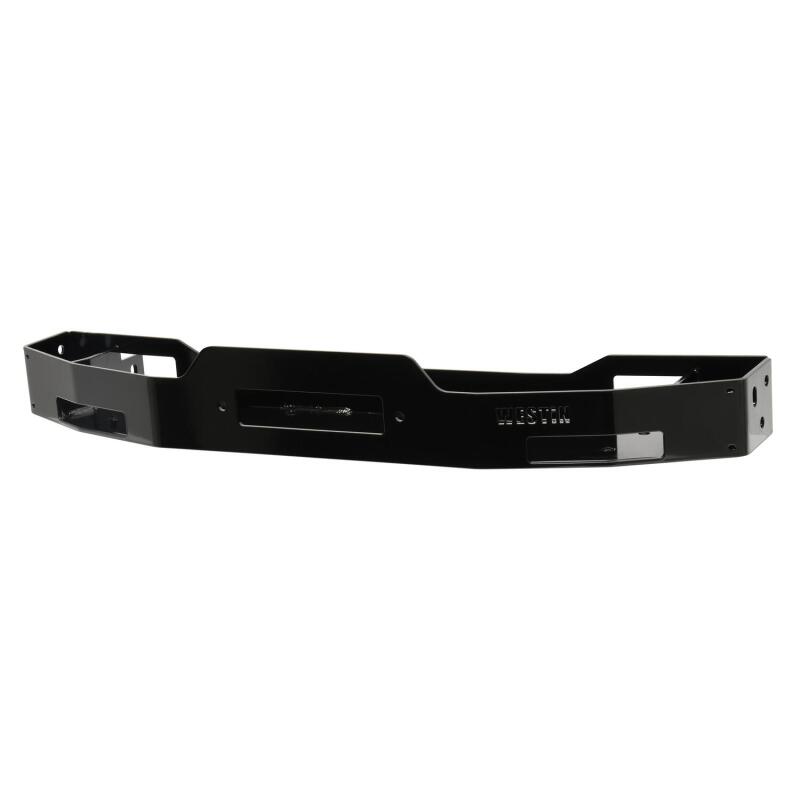

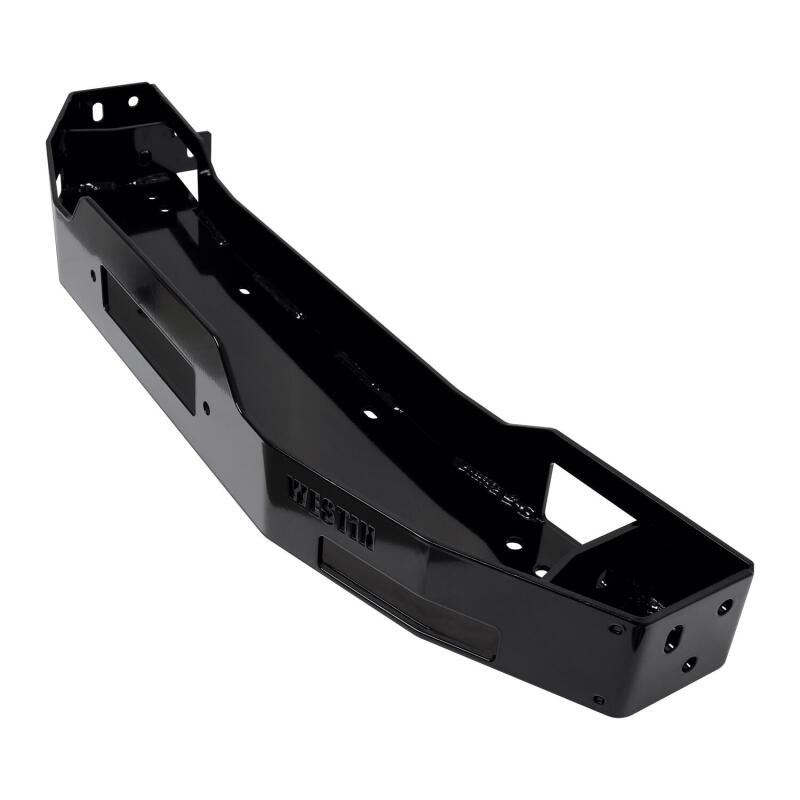

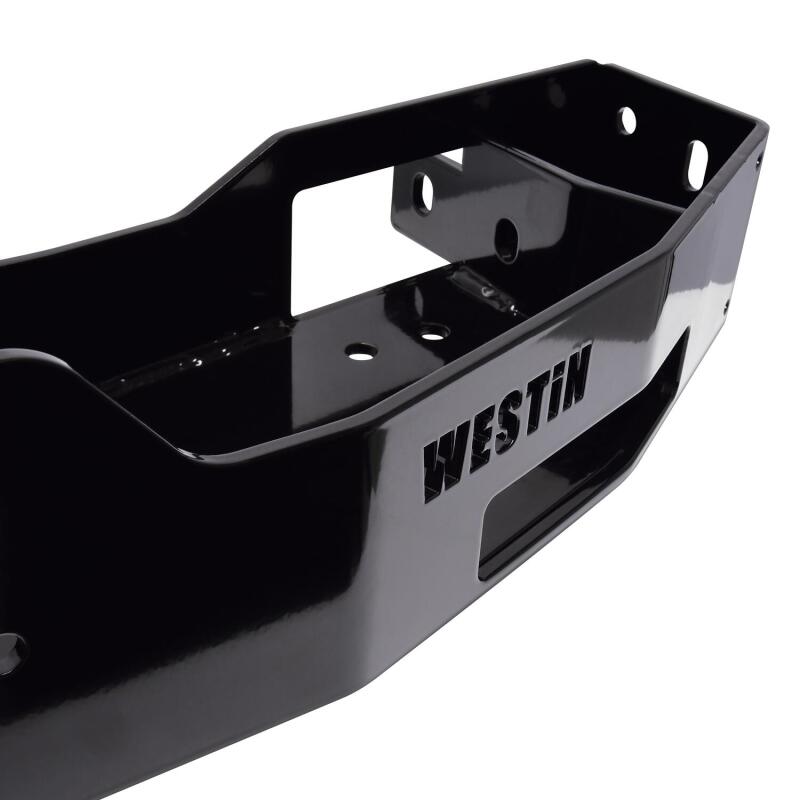

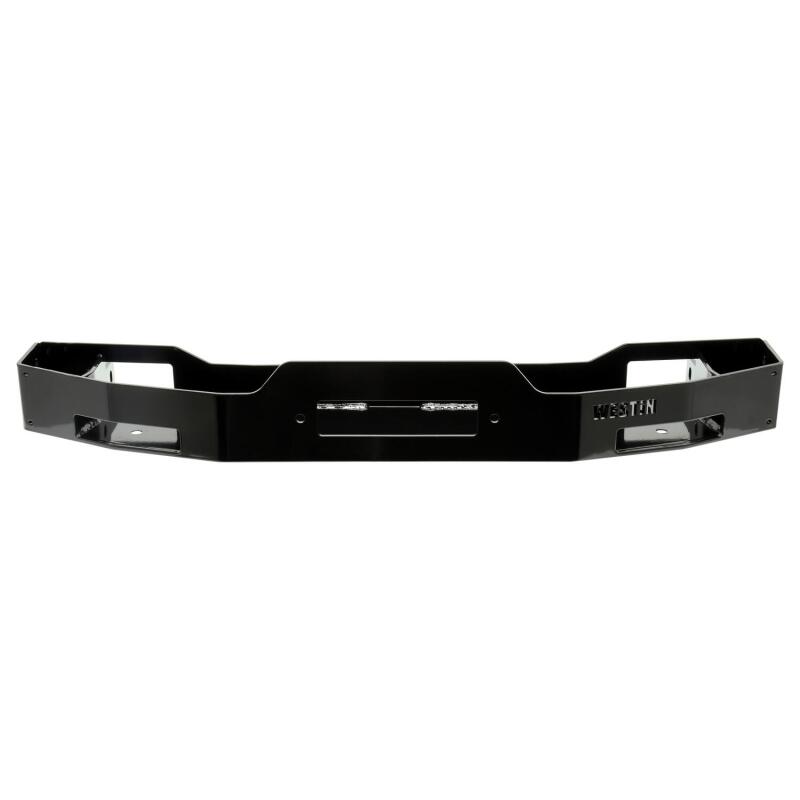

Westins MAX Winch Tray is the core product in our winch mounting system that mounts directly to the vehicle frame. MAX Winch Trays are constructed of heavy weight steel designed to provide a sturdy platform for winch mounting that is pre-drilled for easy bolt-on mounting of the winch and roller fairlead (not included). MAX Winch Trays are compatible with most major brand medium frame winches. The tray is rated line pull of up to 16500 lbs. All trays feature openings for two MAX Tow Hooks (sold individually) for clevis hook anchoring.

Installation Instructions
  • Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
  • Winch tray tested to a maximum straight line pull of 16,500 lbs
  • Pre-drilled for quick mounting of hawse or roller fairlead
  • Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)

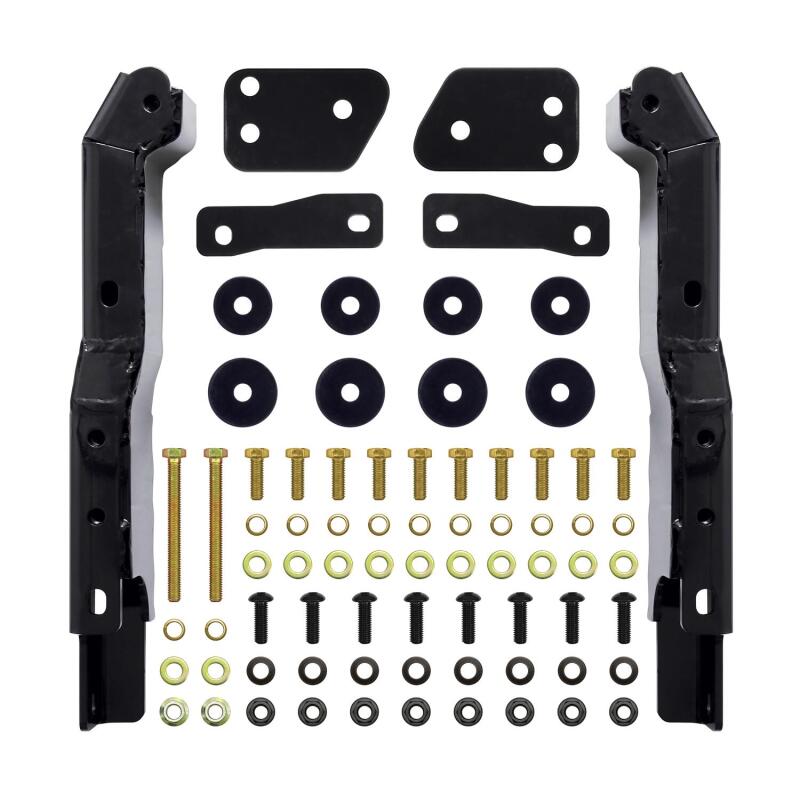

  • HD brackets mount directly to vehicle frame
  • MAX Grill Guards Bolt Directly To Tray
  • Accommodates Up To 12000 lb. Winches
  • Optional MAX Bull Bar/Light Bar
  • Mounts Directly To Frame
  • Optional MAX Faceplate
  • No Drill Installation

This Part Fits:

Year Make Model Submodel
2021-2024 Chevrolet Suburban Commercial
2021-2026 Chevrolet Suburban High Country
2021-2026 Chevrolet Suburban LS
2021-2026 Chevrolet Suburban LT
2021-2026 Chevrolet Suburban Premier
2021-2026 Chevrolet Suburban RST
2021-2026 Chevrolet Suburban Z71
2022-2026 Chevrolet Tahoe Commercial
2021-2026 Chevrolet Tahoe High Country
2021-2026 Chevrolet Tahoe LS
2021-2026 Chevrolet Tahoe LT
2021-2026 Chevrolet Tahoe PPV
2021-2026 Chevrolet Tahoe Premier
2021-2026 Chevrolet Tahoe RST
2021-2026 Chevrolet Tahoe SSV
2021-2026 Chevrolet Tahoe Z71
